제품
언제나 Tapex가 함께합니다.
휴대폰 전화기기에 관련된 제품으로 디스플레이 MODULE 및 휴대폰 조립시 각종 부품 조립에 적용되는 양/단면 차광 테이프 및 투명 양면 테이프 입니다.

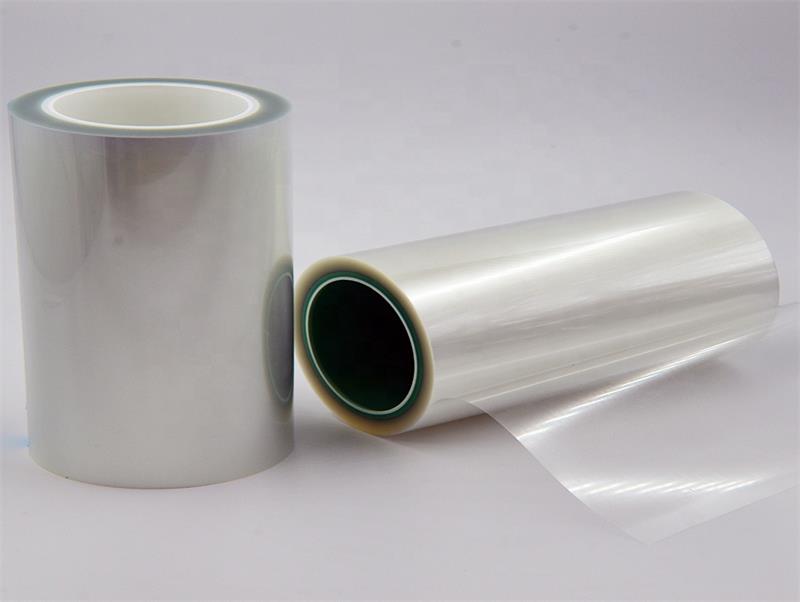

OCA(Optically Clear Adhesive)
OLED, LCD 디스플레이 적용 되는 광학용 무기재 투명 테이프 입니다. 우수한 투명성과 접착성, 기포 억제 능력이 뛰어납니다.
TSP Cover, Rear 고정용 테이프
휴대폰 부품고정용 테이프 입니다. 차광성, 내충격성이 우수하며, 카메라 모듈 및 키패드 디바이스 등 국소부 고정용으로 사용합니다.
| Grade no | Base film(㎜) | adhesive | Total thickness(㎜) | Color | Adhesion power | Remark |
|---|---|---|---|---|---|---|
| CU-1xy01 | None | Acrylic | 0.025 | High Trans | 1300 | for ITO Sensor(F/F) |
| CU-1xy02 | None | Acrylic | 0.05 | High Trans | 1800 | for ITO Sensor(F/F) |
| CU-1xy03 | None | Acrylic | 0.075 | High Trans | 2000 | for ITO Sensor(F/F) |
| CU-1xy04 | None | Acrylic | 0.1 | High Trans | 2200 | for ITO Sensor(G/F, G/FF) |
| CU-1xy05 | None | Acrylic | 0.125 | High Trans | 2400 | for ITO Sensor(G/F, G/FF) |
| CU-1xy06 | None | Acrylic | 0.15 | High Trans | 2600 | for ITO Sensor(G/F, G/FF) |
| CU-1xy07 | None | Acrylic | 0.175 | High Trans | 2800 | for ITO Sensor(G/F, G/FF) |
| CU-1xy08 | None | Acrylic | 0.2 | High Trans | 3000 | for ITO Sensor(G/F, G/FF) |
| CU-1xy10 | None | Acrylic | 0.25 | High Trans | 3200 | for ITO Sensor(G/F, G/FF) |
| LO-1101 | None | Acrylic | 0.025 | High Trans | 800 | for ITO Sensor(For P/G) |
| LO-1102 | None | Acrylic | 0.05 | High Trans | 1400 | for ITO Sensor(For P/G) |
| LO-1103 | None | Acrylic | 0.075 | High Trans | 1700 | for ITO Sensor(For P/G) |
| LO-1104 | None | Acrylic | 0.1 | High Trans | 1800 | for ITO Sensor(For P/G) |
| LO-1105 | None | Acrylic | 0.125 | High Trans | 1900 | for ITO Sensor(For P/G) |
| LO-1106 | None | Acrylic | 0.15 | High Trans | 2200 | for ITO Sensor(For P/G) |
| LO-1107 | None | Acrylic | 0.175 | High Trans | 2300 | for ITO Sensor(For P/G) |
| LO-1108 | None | Acrylic | 0.2 | High Trans | 2400 | for ITO Sensor(For P/G) |
| CU-63304 | None | Acrylic | 0.1 | High Trans | 2600 | for P-Lens |
| CU-63305 | None | Acrylic | 0.125 | High Trans | 2900 | for P-Lens |
| CU-63306 | None | Acrylic | 0.15 | High Trans | 3200 | for P-Lens |
| CU-63307 | None | Acrylic | 0.175 | High Trans | 3400 | for P-Lens |
| CU-7xy01 | None | Acrylic | 0.025 | High Trans | 1300 | for ITO Sensor(F/F) |
| CU-7xy02 | None | Acrylic | 0.05 | High Trans | 1700 | for ITO Sensor(F/F) |
| CU-7xy03 | None | Acrylic | 0.075 | High Trans | 1900 | for ITO Sensor(F/F) |
| CU-7xy04 | None | Acrylic | 0.1 | High Trans | 2200 | for ITO Sensor(G/F, G/FF) |
| CU-7xy05 | None | Acrylic | 0.125 | High Trans | 2400 | for ITO Sensor(G/F, G/FF) |
| CU-7xy06 | None | Acrylic | 0.15 | High Trans | 2500 | for ITO Sensor(G/F, G/FF) |
| CU-7xy07 | None | Acrylic | 0.175 | High Trans | 2600 | for ITO Sensor(G/F, G/FF) |
| CU-5xy06 | None | Acrylic | 0.15 | High Trans | 2800 | Direct bonding*(2nd UV) |
| CU-5xy07 | None | Acrylic | 0.175 | High Trans | 3100 | Direct bonding*(2nd UV) |
| CU-5xy08 | None | Acrylic | 0.2 | High Trans | 3200 | Direct bonding*(2nd UV) |
| CU-5xy10 | None | Acrylic | 0.25 | High Trans | 3400 | Direct bonding*(2nd UV) |
| BLC AA7575 | PET | Acrylic | 0.25 | Blue Cut 30% | 2100 | for ITO Sensor |
| BLC A100 | PET | Acrylic | 0.15 | Blue Cut 30% | 2100 | for ITO Sensor |
| A3120B | PET(0.025) | Acrylic | 0.2 | Black | 2240 | Double sided |
| A3125B | PET(0.050) | Acrylic | 0.25 | Black | 2550 | Double sided |
| A3130B | PET(0.075) | Acrylic | 0.3 | Black | 2750 | Double sided |
| S4902F | PI(0.013) | Silicone | 0.02 | Amber | 375 | Release Film(0.050) |
| S4903F | PI(0.013) | Silicone | 0.03 | Amber | 500 | Release Film(0.050) |
| S4905F | PI(0.025) | Silicone | 0.05 | Amber | 800 | Release Film(0.050) |
| S4910F | PI(0.050) | Silicone | 0.1 | Amber | 960 | Release Film(0.050) |
| 5150H(BH) | PET(0.016) | Acrylic | 0.150 | Black | 2300 |
